Topology

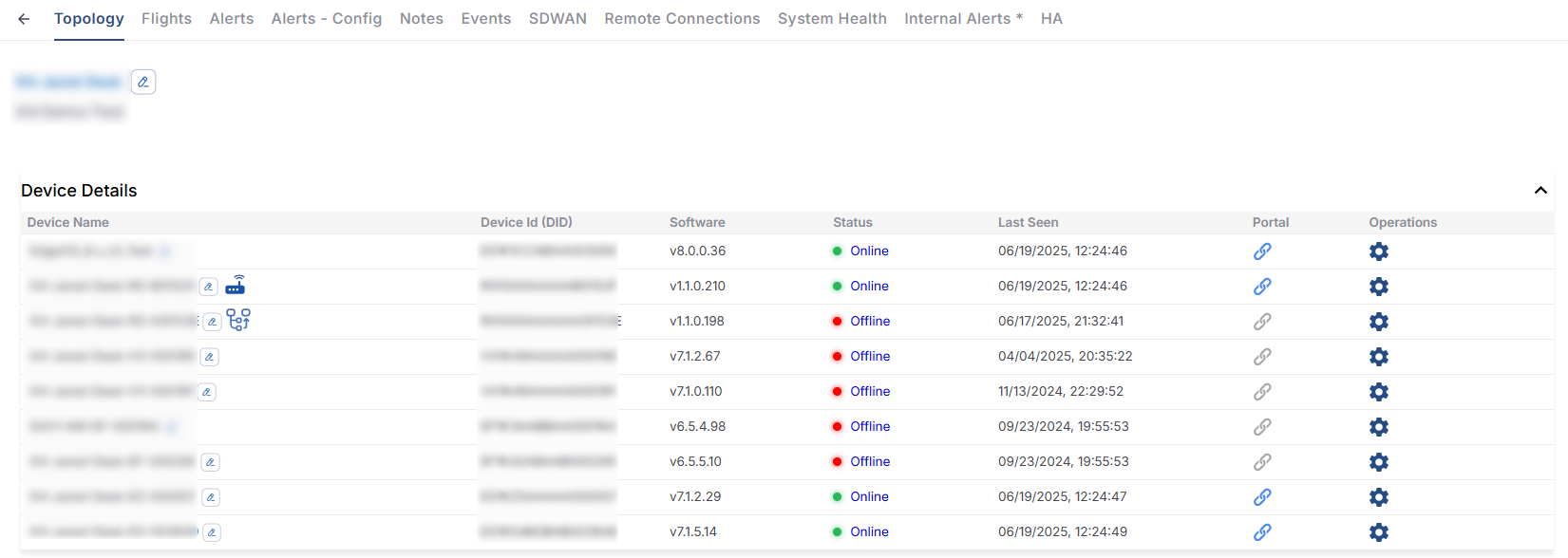

Once the user selects the required Site, the Topology screen opens. This screen lists all the devices deployed on the selected site under the Device Details section.

Click the Update Site Name icon to edit the Site name.

The screen shows information such as:

• Device Name - Name of the device. Click the Update Device Name icon to placed next to the name of the device to edit the Device name.

• Device ID - Identification Number of the Device

• Software - Current EOS Version of the Device

• Status - Status of the Device

• Last Seen - Date and time when the device was last online

• Portal - Link to open the Edge Portal

Click the icon from the Operations column to open the Nexus OS or OpenEdge Configuration dialog box of the selected device. The type of dialog box opening is based on the type of the device.

The Nexus OS Configurations dialog box contains the following options in its left menu bar - Traffic Policy, Firewall, WAN Profile, Hub IP, Quota, System and Transfer. These options can be used to create, copy and modify various configurations for the selected device.

Refer the below page to perform the configurations.
