Nexus 2 - Application Examples
Nexus 2 and Starlink

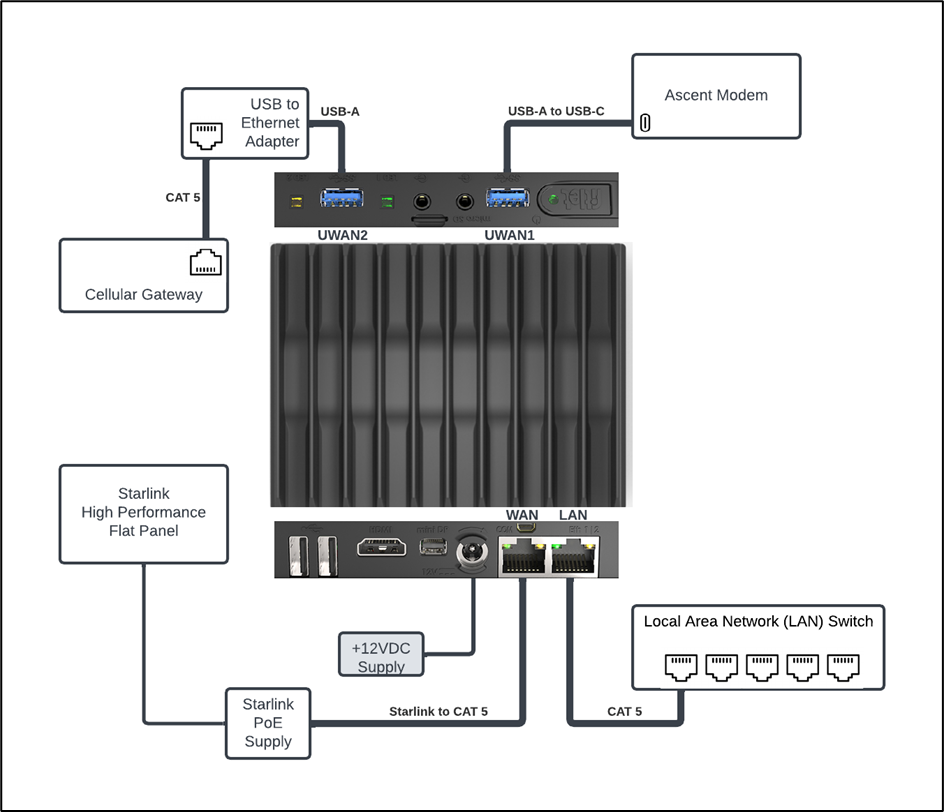

The figure below shows a common configuration of Nexus 2 using: Starlink, an Ethernet Cellular Gateway, a USB-C Nexus Modem, and an ethernet LAN switch.
Nexus 2 Example with Starlink and 5G
Nexus 2 and Starlink, with USB Ethernet WAN Expansion

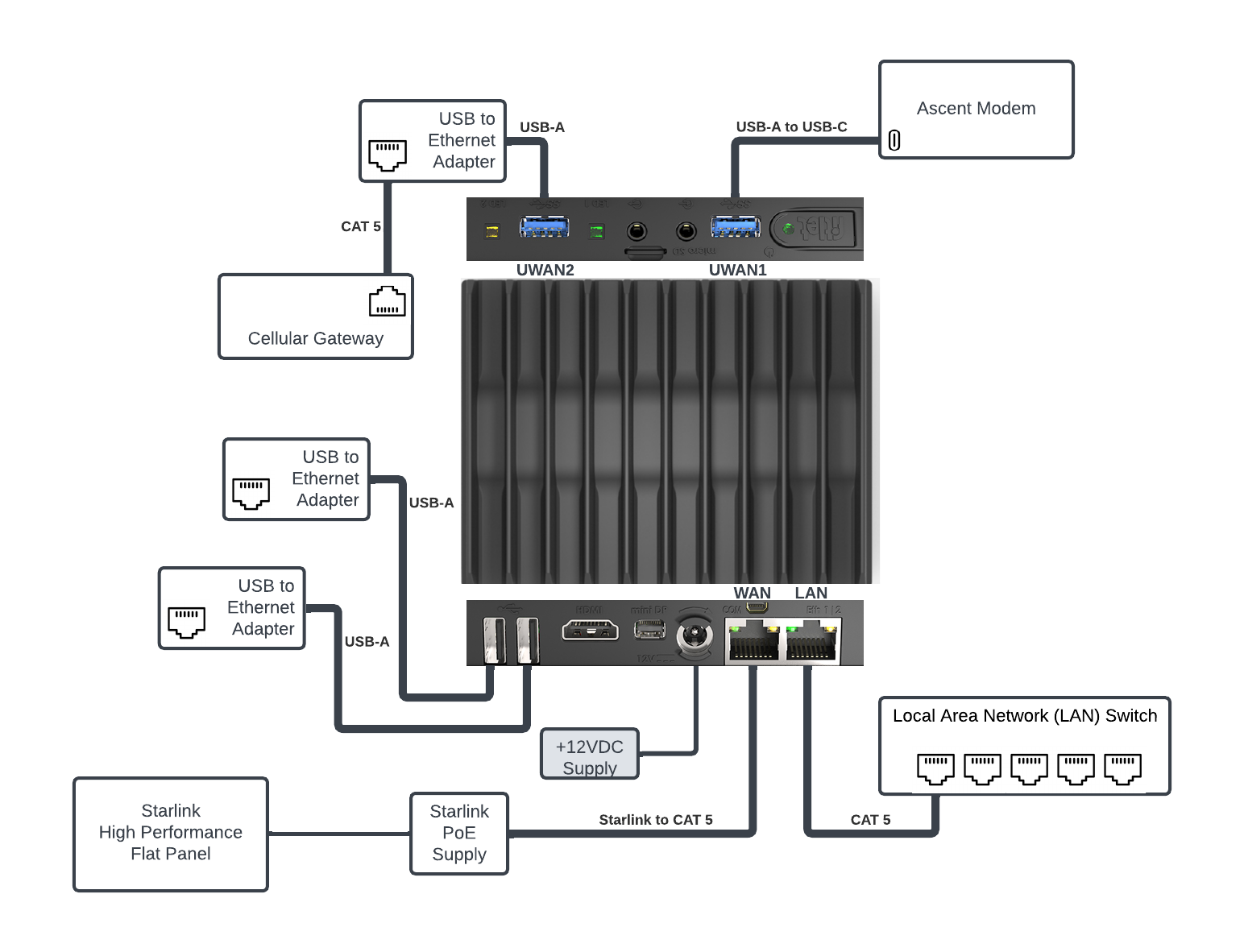

The figure below shows a common configuration of Nexus 2 using: Starlink, an Ethernet Cellular Gateway through a USB to Ethernet expansion dongle, a USB-C Nexus Modem, an ethernet LAN switch, and two USB to Ethernet dongles for additional WAN sources.
Nexus 2 Example using Ethernet Adapters for WAN expansion
Nexus 2 SD-WAN for Multi-Orbit VSAT with 5G

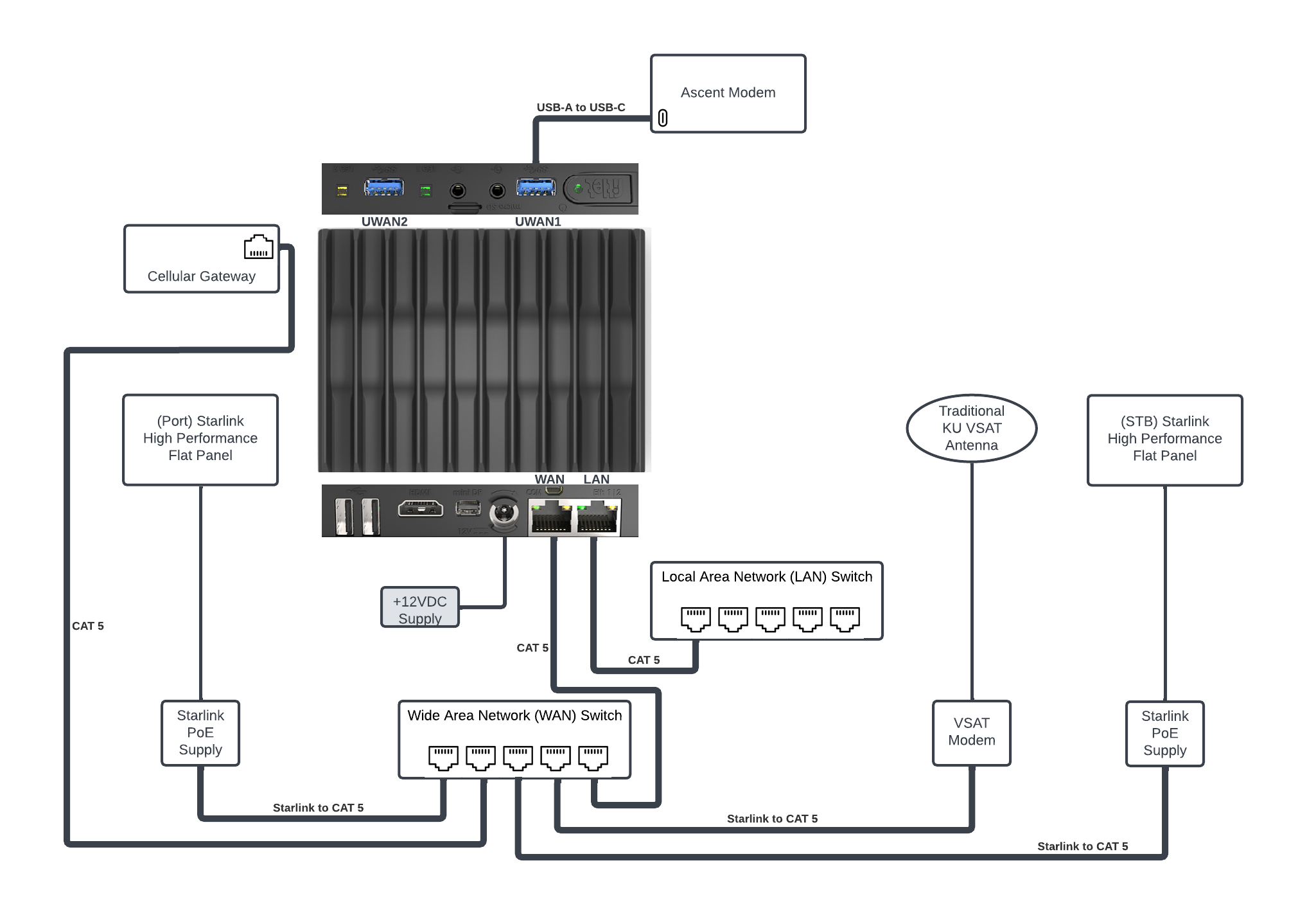

The figure below shows a common configuration of Nexus 2 using: An ethernet LAN switch, a USB-C Nexus Modem 5G, and a 5-port ethernet switch for WAN selection of: Dual Starlink Terminals, a KU VSAT Terminal, and an Ethernet Cellular Gateway.
Nexus 2 Example with Dual Starlink, VSAT, and Dual 5G Modems
